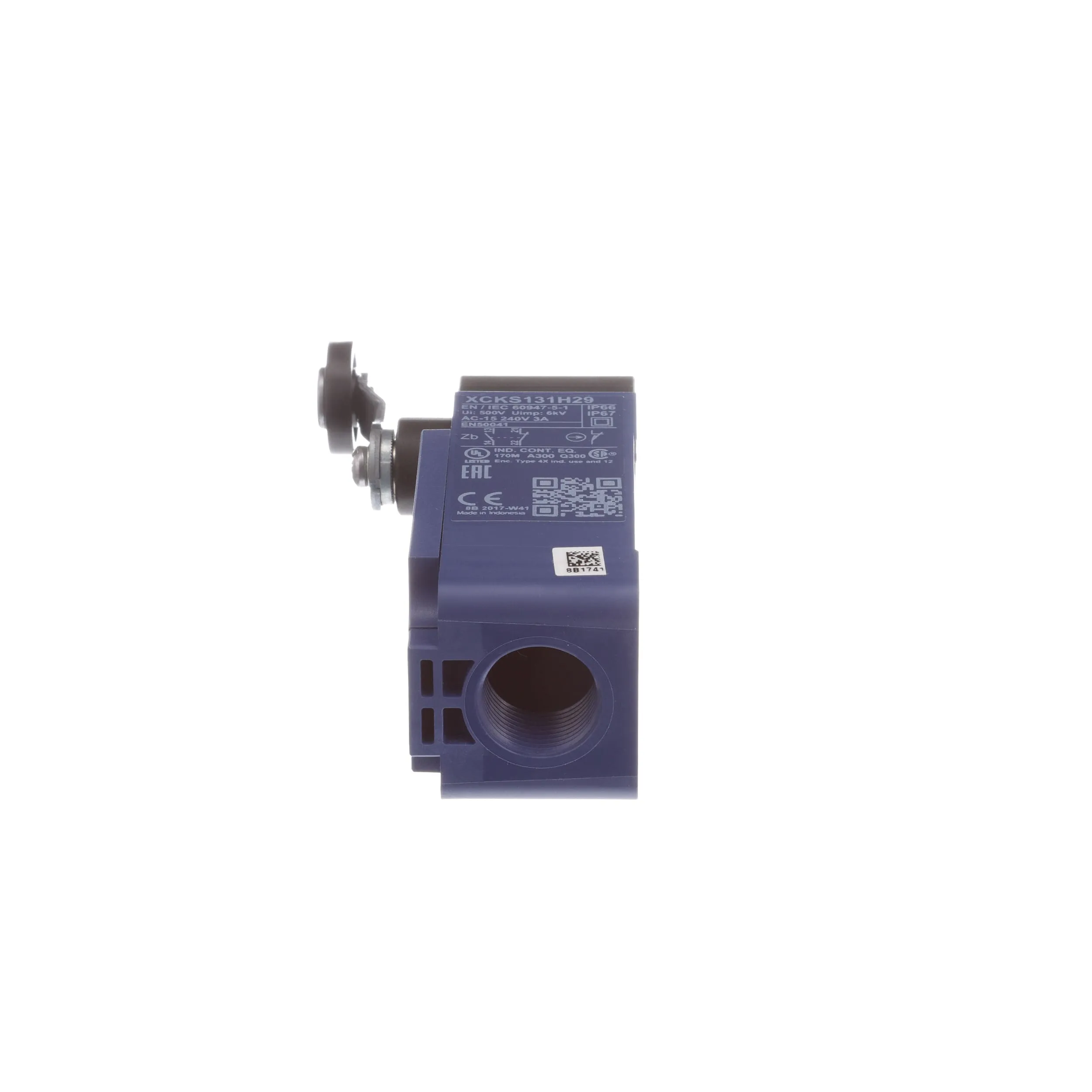

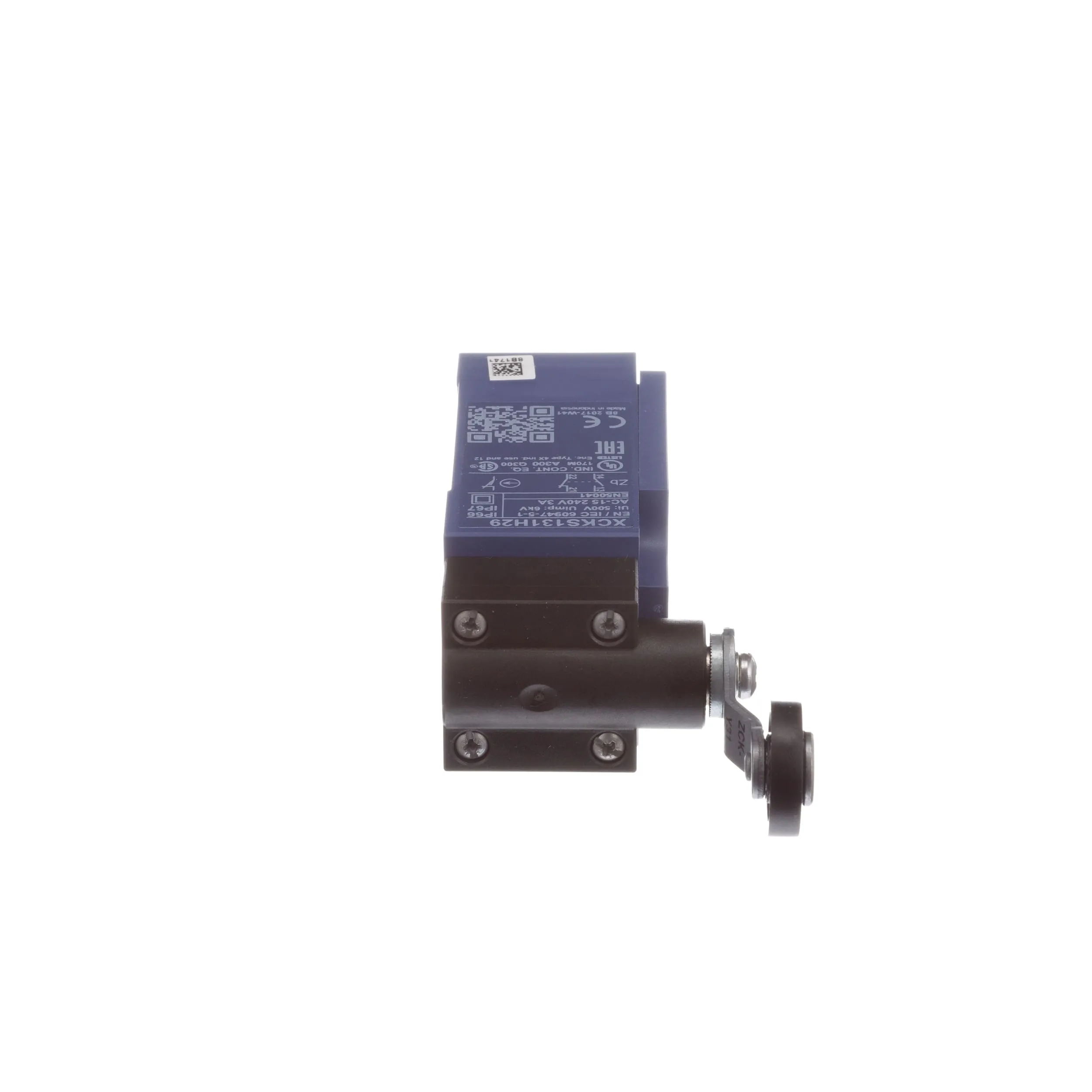

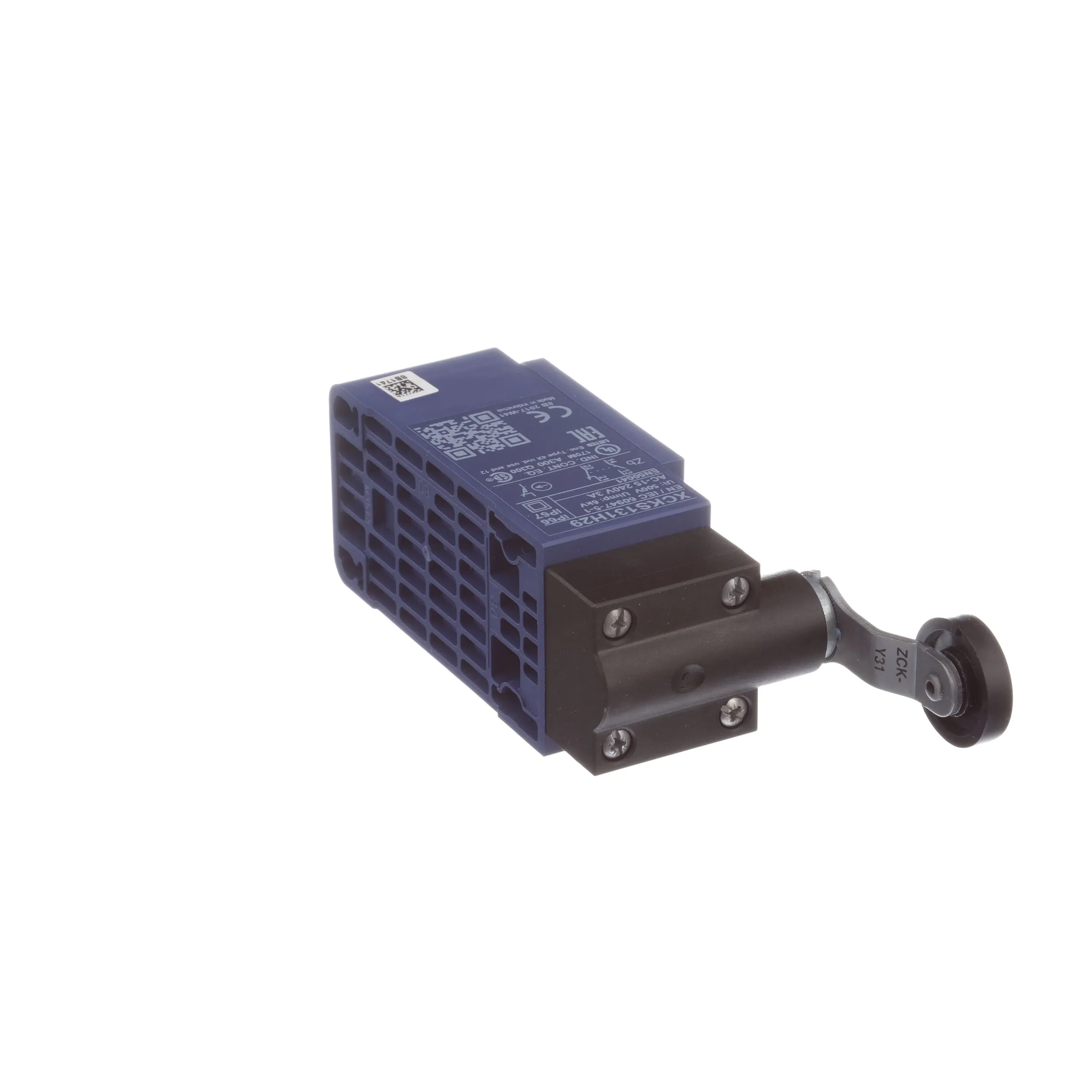

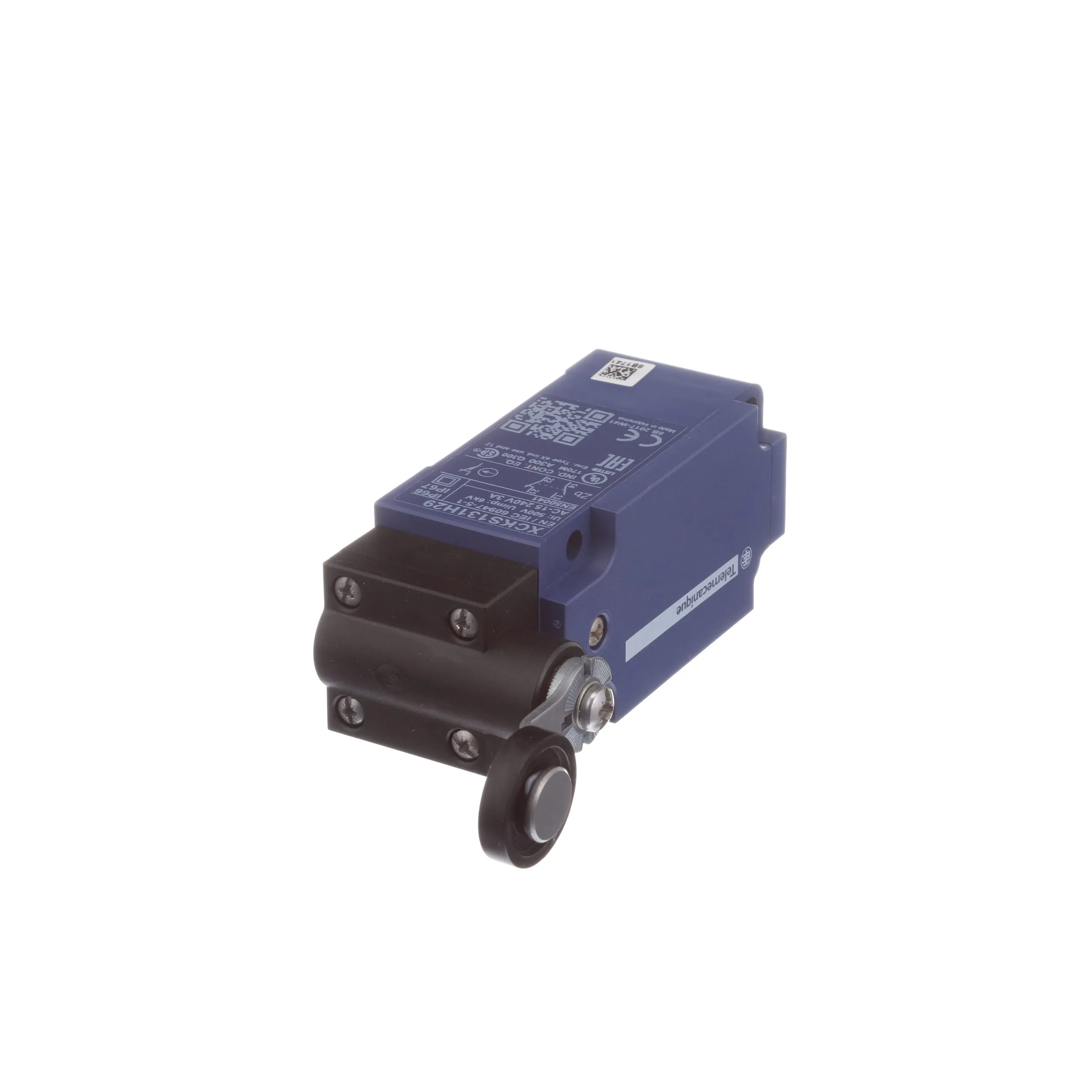

Name: Telemecanique Sensors XCKS131H29
SKU: 522471

Product Details ＋

Product Attribute	Attribute Value
Actuator Type	Lever
Contact Form	1NO 1NC
Current Rating	3 A
Family Name	OsiSense XC
Operation	Snap Action
Series
Termination	Screws
UPC Code	3389110973082
Voltage Rating	240 VAC

Overview

Telemecanique Sensors | XCKS Series – OsiSense™ XC Standard Limit Switches:

The new OsiSense XCKS limit switches range, with 2 integrated contacts, offers “all-in-one", ready to use products. OsiSense XCKS limit switch provides even more reliably in a variety of demanding applications, including construction lifts, injection and molding presses, conveying and others. The variable composition range expands the offer up to 4 contacts and choice among 18 different actuators. 2 and 3 snap action and slow break contact blocks, with positive opening operation, are interchangeable between the Compact design XCKD and XCKP and Classic XCKJ, XCKS, XCKM and XCKL ranges.

Features:

Robust, proven design, engineered to withstand heavy shock impact

Enhanced water-resistance to immersion and from strong jets of water

Strong mounting with use of four screws. Easy to install and use.

Degree of protection: IP66, IP67, IK05

Compliant with: EN/IEC 60947-5-1, UL508, CSA C22-2 no. 14, CCC, EAC

Conforming to IEC 60947-5-1 Appendix C

Utilization categories AC-15 and DC-13

Maximum operating rate: 3600 operating cycles/hour

Load factor: 0.5

Protective treatment Standard version: “TC"

Ambient air temperature For operation: - 25… 70°C. For storage: - 40… 70°C

Shock resistance 25 gn (18 ms) conforming to IEC 60068-2-27 except head ZCE08: 15 gn (18 ms)
