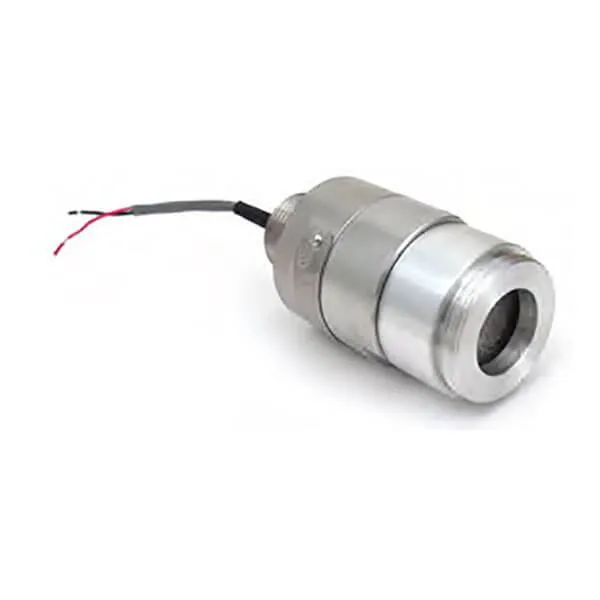

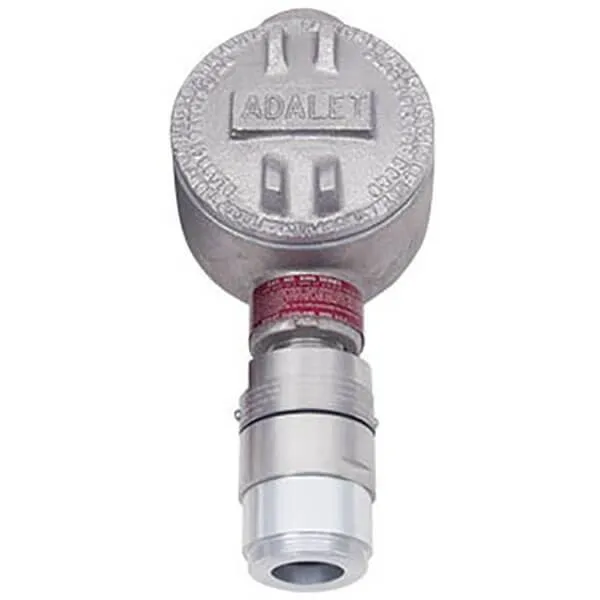

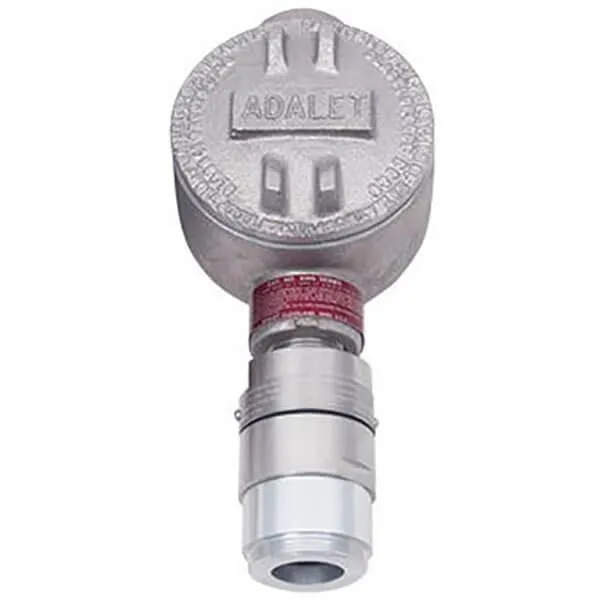

RKI Non-Explosion Proof Direct Connect Sensor provide reliable, economical detection for Class I, Division 2 hazardous areas. The Non-Explosion Proof is available for Oxygen, H2S, and CO. Designed specifically to work with RKI controllers such as the , , or Beacon 410, the Direct Connect Sensors can be either mounted directly to the controller box, or mounted to explosion-proof junction boxes for remote gas detection.
Applications: Petrochemical plants, Refineries, Gas plants, Offshore drilling platforms, Water & wastewater treatment plants, Pulp & paper mills, Gas, telephone, & electric utilities, Parking garages, Manufacturing facilities, Steel, Automotive
Key Features:
- Electrochemical-type plug-in sensors
- Fast response
- Compatible with Beacon 110, Beacon 200, and Beacon 410
- Long life
- No tools required for replacement
- Indoor/outdoor
- Water repellent patented sensor coating (except toxics)
- Measuring Range: 0-5000 ppm, 0-5.0% Vol., 0-50% Vol., 0-100% Vol.
- Lower Detectable Limit (LDL): 2% of full scale
- Response Time: 30 seconds
- Life Expectancy: 5 years with normal service
Part Numbers:
65-2494RK - Oxygen (O2) 0 - 25%, Sensor Only
65-2495RK - Hydrogen Sulfide (H2S) 0 - 100 ppm Sensor Only
65-2496RK - Carbon Monoxide (CO) 0 - 300 ppm Sensor Only
65-2497RK - Oxygen (O2) 0 - 25% Sensor with J-box
65-2498RK - Hydrogen Sulfide (H2S) 0 - 100 ppm Sensor with J-box
65-2499RK - Carbon Monoxide (CO) 0 - 300 ppm Sensor with J-box
