RKI Non-Explosion Proof CO2 Direct Connect Sensor provide reliable, economical detection for Class I, Division 2 hazardous areas, Designed specifically to work with RKI controllers such as the , , or Beacon 410, the Direct Connect Sensors can be either mounted directly to the controller box, or mounted to explosion-proof junction boxes for remote gas detection.
Applications: Petrochemical plants, Refineries, Gas plants, Offshore drilling platforms, Water & wastewater treatment plants, Pulp & paper mills, Gas, telephone, & electric utilities, Parking garages, Manufacturing facilities, Steel, Automotive
Key Features:
- Electrochemical-type plug-in sensors
- Fast response
- Compatible with Beacon 110, Beacon 200, and Beacon 410
- Long life
- No tools required for replacement
- Indoor/outdoor
- Water repellent patented sensor coating (except toxics)
- Measuring Range: 0-5000 ppm, 0-5.0% Vol., 0-50% Vol., 0-100% Vol.
- Lower Detectable Limit (LDL): 2% of full scale
- Response Time: 30 seconds
- Life Expectancy: 5 years with normal service
Part Numbers:

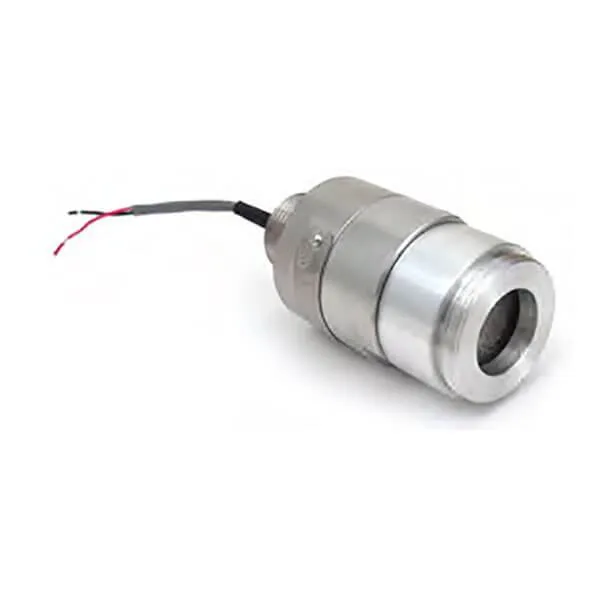

61-0198RK-02 - 0-5,000 ppm Sensor Only
61-0198RK-03 - 0-5% Vol. Sensor Only
61-0198RK-05 - 0-50% Vol. Sensor Only
61-0198RK-10 - 0-100% Vol. Sensor Only

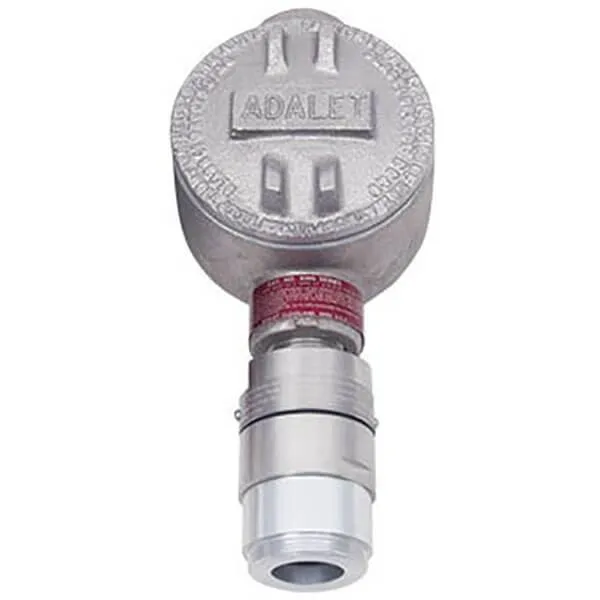

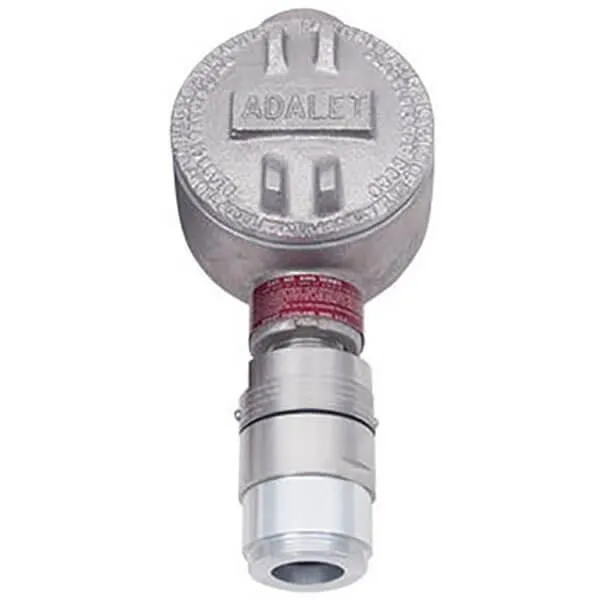

61-1007RK-02 - 0-5,000 ppm Sensor with J-box
61-1007RK-03 - 0-5% Vol. Sensor with J-box
61-1007RK-05 - 0-50% Vol. Sensor with J-box
61-1007RK-10 - 0-100% Vol. Sensor with J-box
