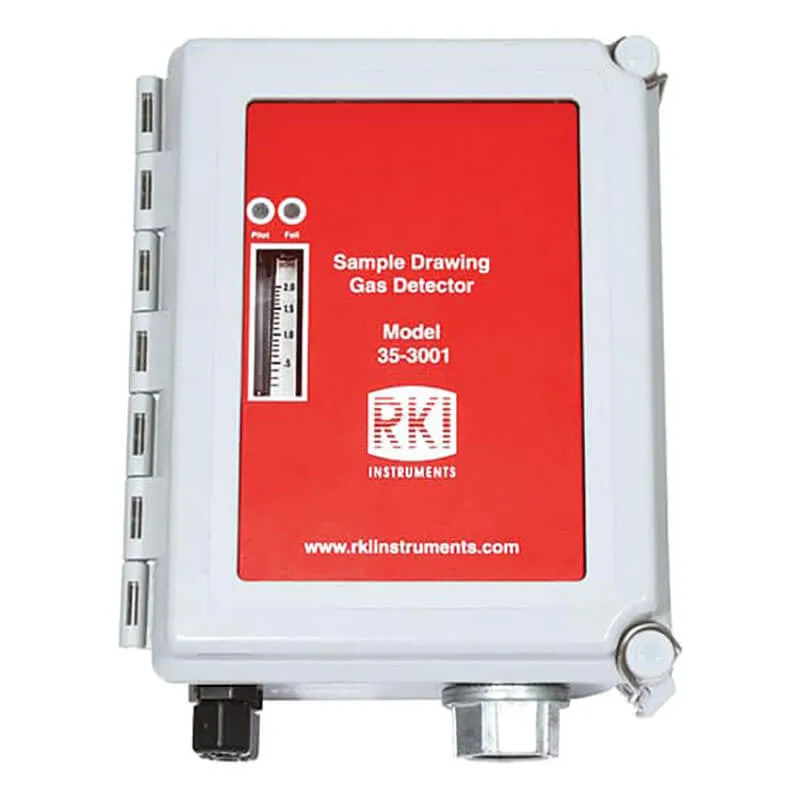

RKI 35-3001 Multi-Gas Direct Connect for Oxygen 0-25% vol / Hydrogen Sulfide 0-100 ppm without a 4-20 mA transmitter is a compact sample draw detector assembly with a built-in pump that is powered from 24VDC. This unit features a NEMA 4X enclosure, making it dust, water and corrosion resistant. It also features a low flow alarm which warns of any obstructions or restrictions in the flow system.
Please call Customer Service at 800-829-9580 if you have questions in choosing the correct product.
The 35-3001 series can be used with the , , , , and . Tubing is sold separately. Recommended tubing size is 1/4” OD.
Applications: Petrochemical plants, Refineries, Water & wastewater treatment plants, Pulp & paper mills, Gas, telephone, & electric utilities, Parking garages, Manufacturing facilities, Steel, Automotive, HVAC
Key Features:
- Oxygen 0-25% vol / Hydrogen Sulfide 0-100 ppm
- Internal sample pump with 100’ range
- Flowmeter and LED’s for operational status
- Low flow indication
- NEMA 4X enclosure
- Operates on 24VDC input
- Without 4-20mA output
Specification Sheet:
Manual:
Part Number:35-3001-09
