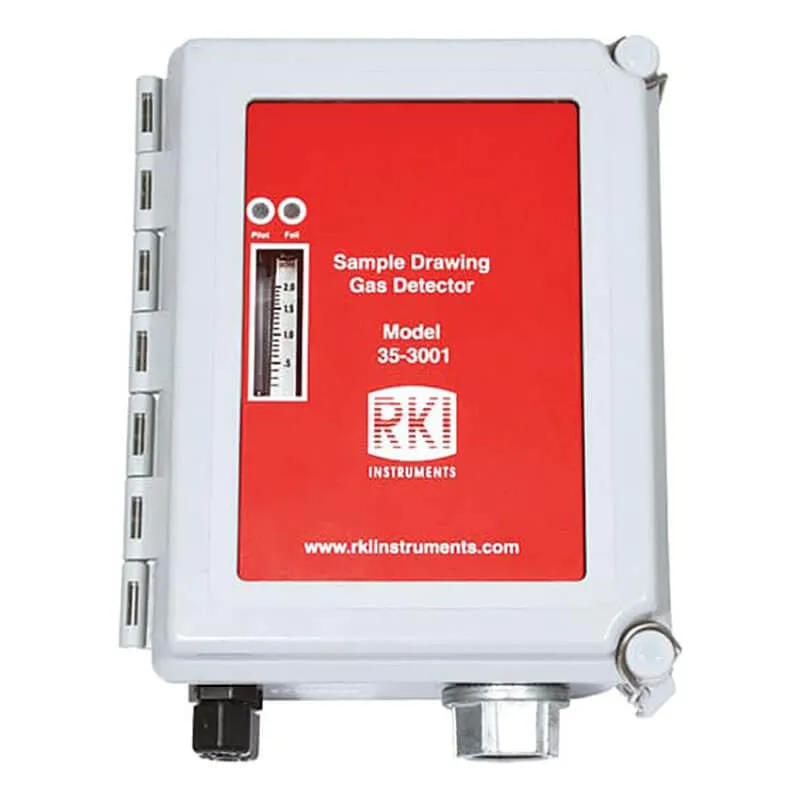

RKI 35-3001 Multi-Gas Direct Connect for combustibles 100% LEL / IR Methane 100% LEL without a 4-20 mA transmitter is a compact sample draw detector assembly with a built-in pump that is powered from 24VDC. This unit features a NEMA 4X enclosure, making it dust, water and corrosion resistant. It also features a low flow alarm which warns of any obstructions or restrictions in the flow system.

Please call Customer Service at 800-829-9580 if you have questions in choosing the correct product.

The 35-3001 series can be used with the , , , and . Tubing is sold separately. Recommended tubing size is 1/4” OD.

Applications: Petrochemical plants, Refineries, Water & wastewater treatment plants, Pulp & paper mills, Gas, telephone, & electric utilities, Parking garages, Manufacturing facilities, Steel, Automotive, HVAC

Key Features:

• Combustibles 100% LEL / IR Methane 100% LEL
• Internal sample pump with 100’ range
• Flowmeter and LED’s for operational status
• Low flow indication
• NEMA 4X enclosure
• Operates on 24VDC input
• Without 4-20mA output
